SAVOX SV1272SGP HV Torque @ 7.4v: 35.0 kg
SAVOX SV1272SGP HV Torque @ 7.4v: 35.0 kg
Regular price
₹10,618
Regular price
Sale price
₹10,618
Taxes included.
Quantity
Couldn't load pickup availability
Taxes included

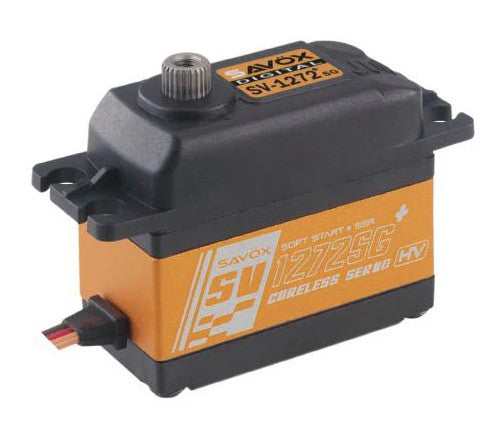

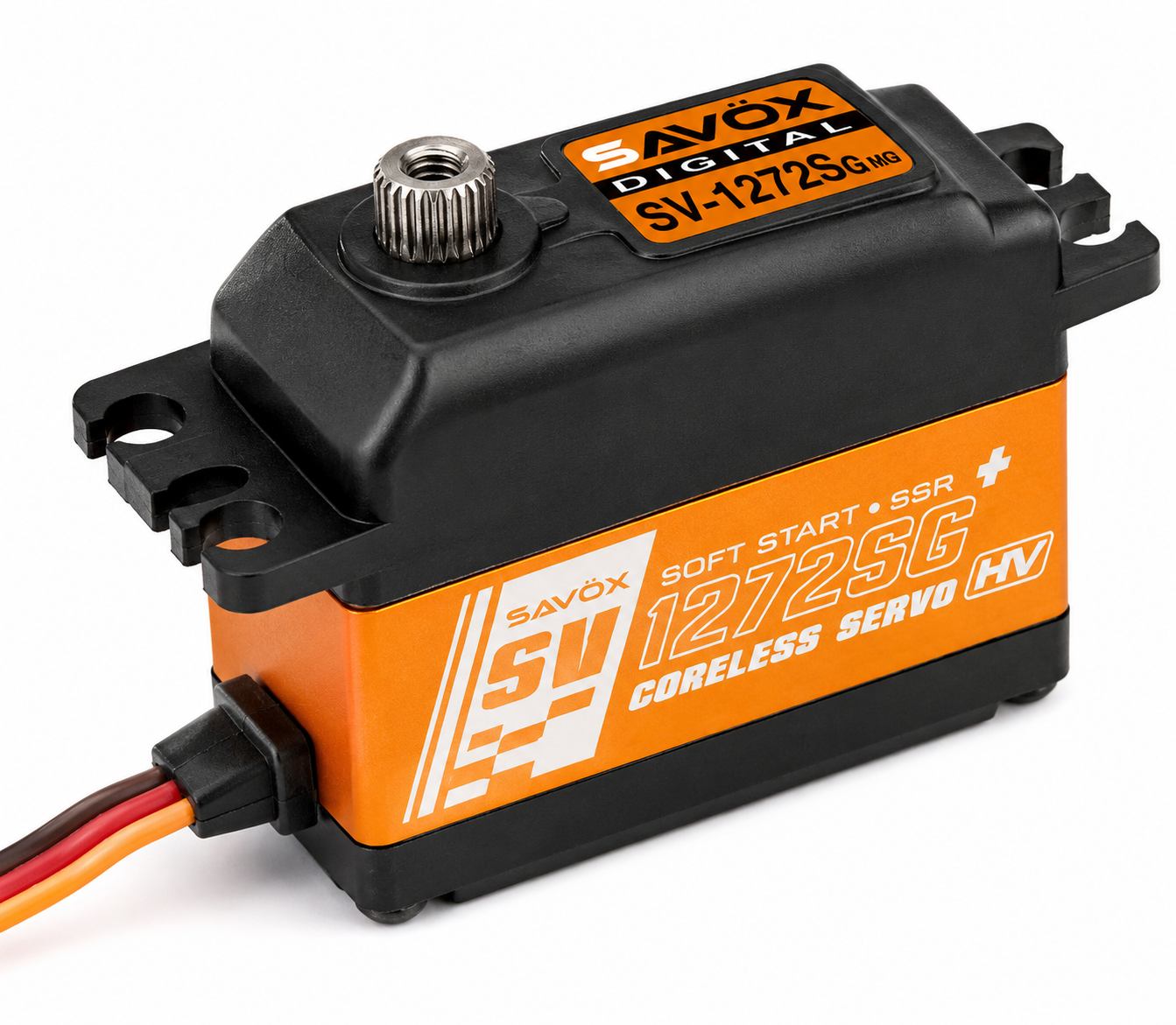

This is the Savox SV-1272SG Plus Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG servo fits many applications.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
- Super strong and precision made unique steel gears provide durability and survive heavy use.
- Capable of HV operation.
- Extreme amount of torque in a standard case.
- Ideal for large scale aircraft, 1/8 off road buggies and trucks, and Monster Trucks.
- "Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Specifications:
- Torque @ 7.4V - 35.0kg/486.1oz-in
- Torque @ 8.4V - 40.0kg/555.5oz-in
- Speed @ 7.4V - 0.10 sec/60 deg
- Speed @ 8.4V - 0.09 sec/60 deg
- Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
- Weight: 63.0g
- Operating Temperature: 14° - 122°F (-10° - 50°C)
- Running Current (no load): 120mA @6.0V, 150mA @7.4V
- Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
- Idle Current: 5mA @4.8V, 5mA @6.0V
- Wire Length: 200 ± 5mm
- Output Gear Spline: 25 Tooth
- Bearings: 2BB
- Operating Travel: 100° (1000 ? 2000 µ second)
- Neutral Position: 1500 µ second
- Pulse Width Range: 800 ? 2200 µ second
- Maximum Travel: Appx 130° (900 ? 2100 µ second)
- Refresh Rate: 333 Hz
- Motor Type: Coreless
