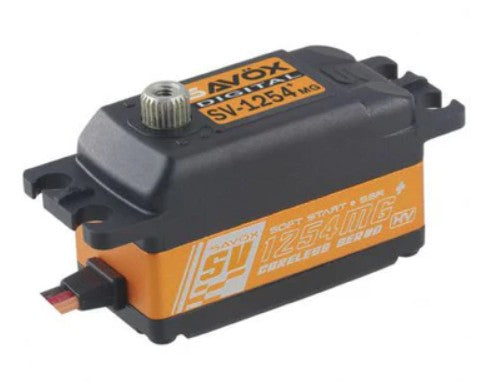

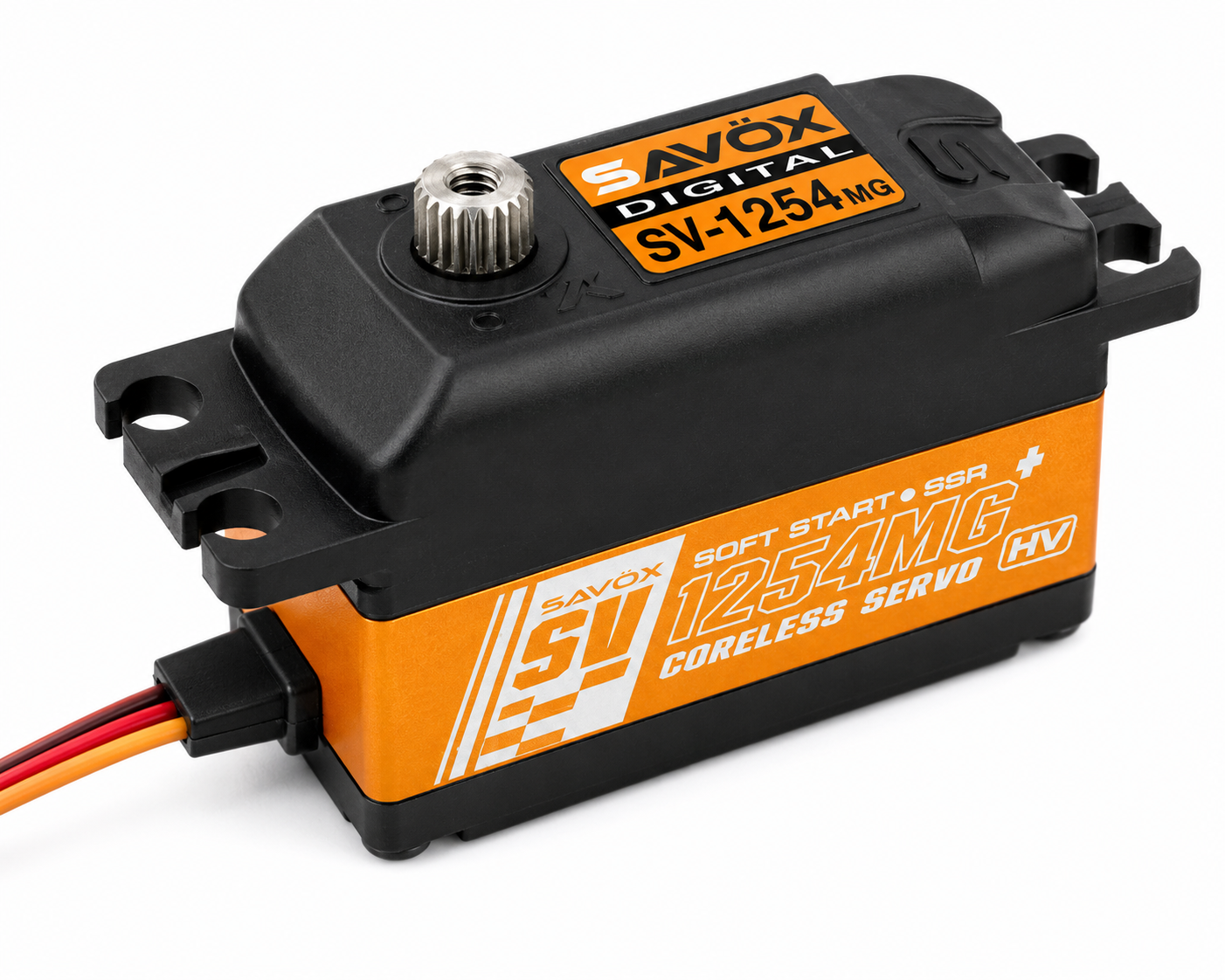

SAVOX SV1254MGP HV Torque @ 7.4v: 15.0 kg

The SV-1254MG Plus servo is a high performance coreless servo with good torque and fast transit time in a low profile package.

"Plus" models feature Soft Start and Sanwa SSR Compatibility

Features:

• Steel gear train provide durability against heavy use.
• Capable of HV operation.
• Standard size performance in a low profile package.
• Soft Start and Sanwa SSR Compatibility

Specifications:

• Torque @ 7.4v - 15.0kg-cm/208.3oz-in
• Torque @ 8.4v - 18.0kg-cm/250.0oz-in
• Speed @ 7.4v - 0.085 sec/60 deg
• Speed @ 8.4v - 0.075 sec/60 deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 46.0g
• Operating Temperature: 14° - 122°F (-10° - 50°C)

• Running Current (no load): 150mA @6.0V, 180mA @7.4V
• Stall Current (at locked): 5200mA @6.0V, 6400mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 ? 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 900 ? 2050 µ second
• Maximum Travel: Appx 160° (700 ? 2300 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
