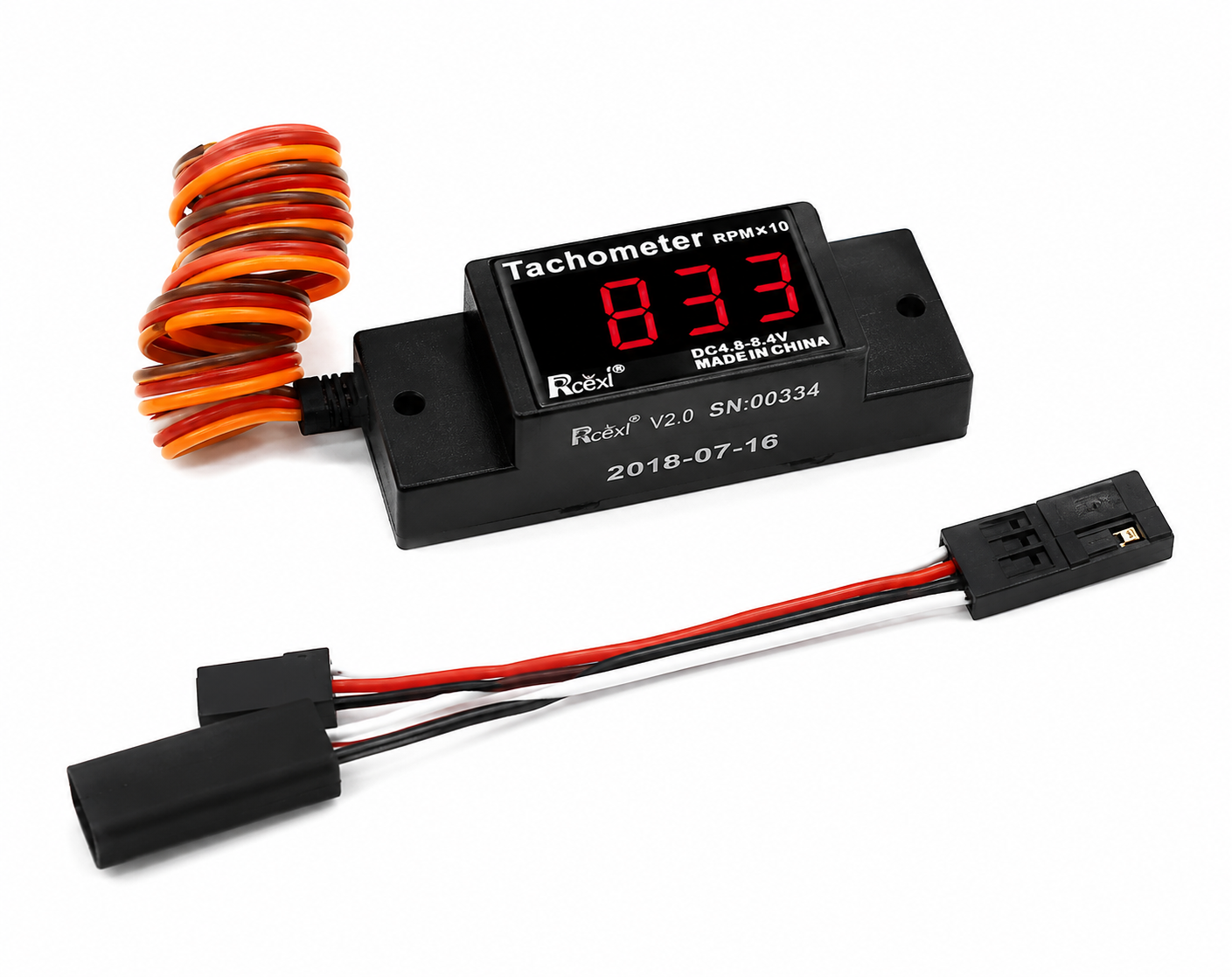

RCEXL On-Board Tachometer
RCEXL On-Board Tachometer
Regular price
₹3,068
Regular price
₹0
Sale price
₹3,068
Taxes included.
Quantity
Couldn't load pickup availability
Taxes included
Please note will not work with RCGF Ignitions.
RCEXL
1. Use PIC16f628a microcontrollers
2. Do not need batteries – powered from the ignition
3. Standard FUTABA plug(Black-Negative Red-Positive and White-Signal)
4. Uses high-brightness LED digital tube.
5. Input voltage range:4.8V-12.0V
6. Current consumption 25mA-60mA
7. Mini tachometer indicates up to 30000 rpm
8. Actual RPM= Display Digital *10
9. Body Size: 41mm L x 17mm W x 12mm H
10.Window Size: 30mm L x 15mm H
11.Weight:8.5g (0.3OZ)
2. Do not need batteries – powered from the ignition
3. Standard FUTABA plug(Black-Negative Red-Positive and White-Signal)
4. Uses high-brightness LED digital tube.
5. Input voltage range:4.8V-12.0V
6. Current consumption 25mA-60mA
7. Mini tachometer indicates up to 30000 rpm
8. Actual RPM= Display Digital *10
9. Body Size: 41mm L x 17mm W x 12mm H
10.Window Size: 30mm L x 15mm H
11.Weight:8.5g (0.3OZ)
