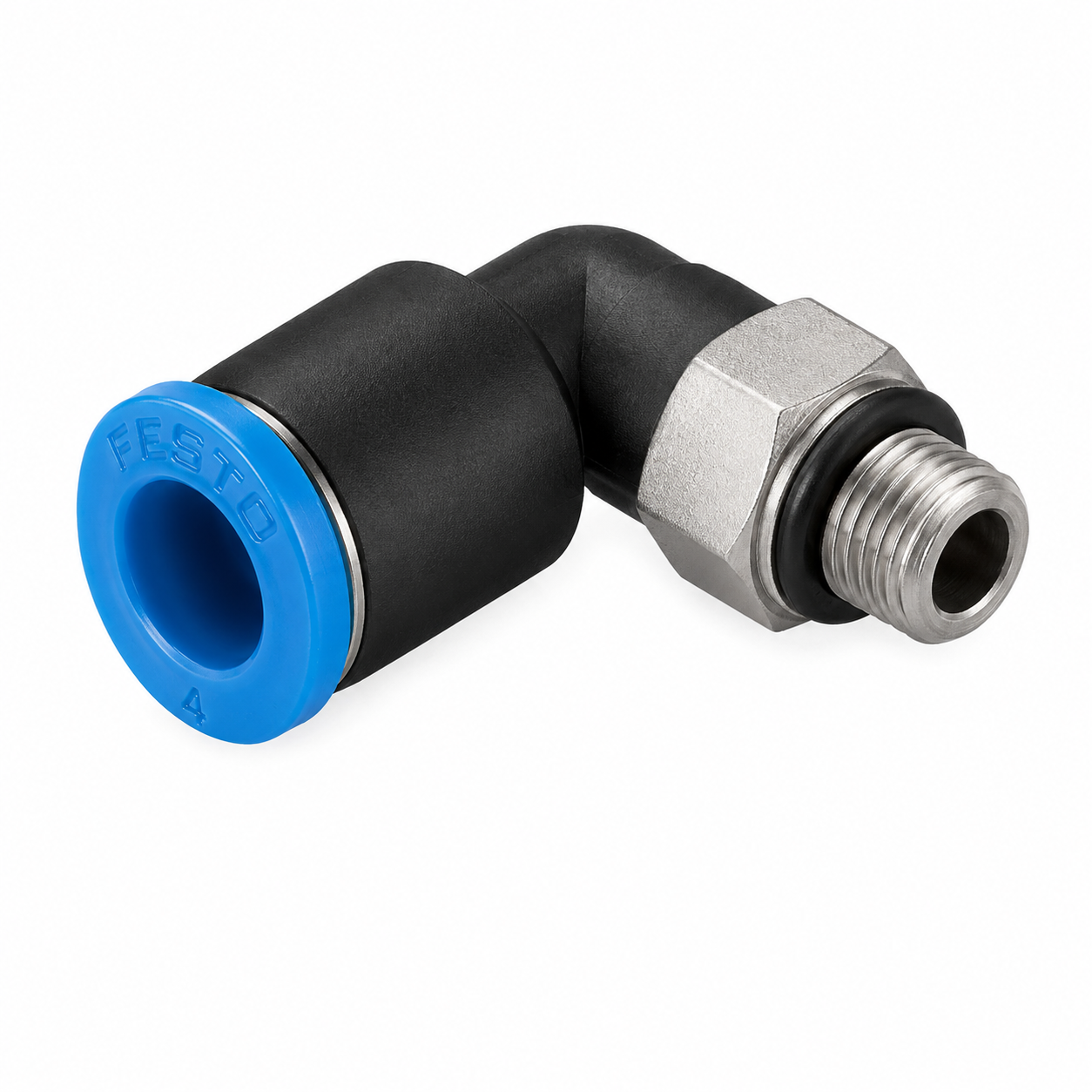

Festo Instant Male Elbow QSML-4-M5

Official Festo type reference: QSML-M5-4 (Festo QSM mini-series push-in L-fitting; Part No. 153333)

The Festo Instant Male Elbow QSML-4-M5 is a compact 90-degree pneumatic L-fitting that connects 4 mm outside-diameter tubing to an M5 male threaded port. Its right-angle geometry is useful where tubing needs to turn immediately at the component connection, helping reduce routing space in compact pneumatic assemblies. The current Festo type designation is QSML-M5-4; this listing uses the commonly presented 4-M5 naming.

Technical specifications

Key features and benefits

·       90-degree layout for efficient tubing direction changes.

·       M5 male thread with sealing ring supports direct component mounting.

·       4 mm push-in port provides quick tube installation.

·       External hexagon supports controlled tightening.

·       Very compact mini-series form factor for dense pneumatic layouts.

Typical applications

·       Compact pneumatic valves

·       Small actuators and cylinders

·       Automation sensors and controls

·       Manifold connections

·       Industrial pneumatic machinery

Installation and handling

·       Use clean, correctly sized pneumatic tubing with a square, burr-free cut.

·       Push the tube fully into the fitting until it reaches the internal stop, then perform a gentle pull check.

·       For removal, depress the blue release ring and withdraw the tube carefully.

·       Use the specified thread/sealing arrangement and tighten to the applicable Festo nominal torque; do not overtighten.

·       Confirm compatibility of the fitting, tubing, pressure, temperature and working medium before commissioning.
