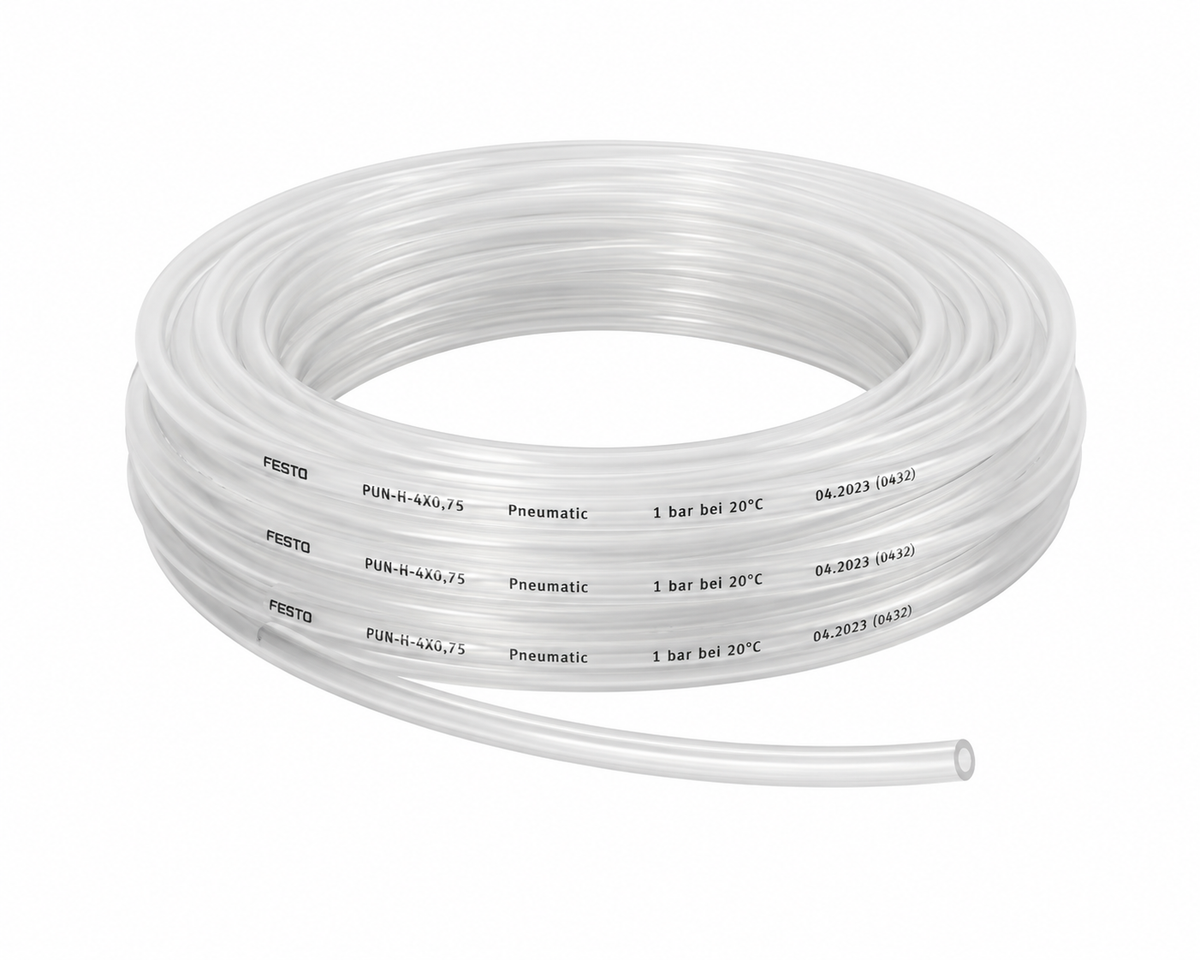

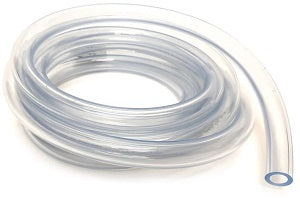

Festo reference / type: PUN-H-4X0,75-NT — Festo Part No. 197376
The Festo PUN-H-4X0,75-NT is a natural-colour polyurethane pneumatic tube with a 4 mm outside diameter and 0.75 mm nominal wall thickness, giving an internal diameter of approximately 2.6 mm. Made from ether-based TPE-U (polyurethane), the tubing is designed for flexible pneumatic installations and is documented by Festo as suitable for energy-chain applications. Its natural/translucent appearance can also make the condition of the line easier to observe. The tube is intended primarily for compressed-air service and is also specified for liquid, ice-free water within the applicable temperature-dependent limits.
Technical specifications
|
Manufacturer |
Festo |
|
Product family |
PUN-H pneumatic tubing |
|
Official type |
PUN-H-4X0,75-NT |
|
Festo part number |
197376 |
|
Colour |
Natural |
|
Outside diameter |
4 mm |
|
Inside diameter |
2.6 mm |
|
Nominal wall thickness |
0.75 mm |
|
Minimum bending radius |
8 mm |
|
Flow-relevant bending radius |
16 mm |
|
Material |
TPE-U (polyurethane), ether-based |
|
Shore hardness |
D 52 ±3 |
|
Operating pressure, complete temperature range |
-0.95 to 6 bar |
|
Temperature-dependent operating pressure |
-0.95 to 10 bar, subject to Festo's temperature/pressure conditions |
|
Ambient temperature |
-35 °C to +60 °C |
|
Operating media |
Compressed air according to ISO 8573-1:2010 [7:-:-]; liquid, ice-free water |
|
Water pressure note |
Maximum 0.3 MPa at 0–60 °C, according to Festo's stated water-pressure limitation |
|
Product weight |
Approx. 0.0085 kg/m |
|
Pneumatic connection compatibility |
Push-in fittings for 4 mm O.D. tube; Festo also lists 5/32 in push-in connection compatibility and 3 mm I.D. barbed fitting with union nut |
|
Material fire test |
UL94 HB |
|
PWIS / LABS conformity |
VDMA24364-B2-L |
|
Li-ion battery production suitability |
Suitable with reduced Cu/Zn/Ni values, F1a |
|
Certification |
TÜV; certificate B 013277 0527 00 |
|
RoHS |
Compliant |
|
Standard listed packaging |
50 m; 500 m version also listed by Festo under part no. 558264 |
Key features and product benefits
· 4 mm outside diameter provides compatibility with common 4 mm push-in pneumatic fittings.
· Ether-based TPE-U construction provides a flexible tubing solution for pneumatic routing.
· Natural colour makes the tube visually unobtrusive and can help inspection of the line.
· Suitable for energy-chain applications according to Festo's technical data.
· Compact 2.6 mm internal diameter balances tubing size with pneumatic flow requirements.
· Designed for repeated routing where flexibility and controlled bending are important.
Typical applications
· Industrial pneumatic control systems
· Factory automation and machine-building
· Compact valve and actuator circuits
· Energy-chain and moving-machine applications
· Instrumentation and pneumatic manifolds
· Robotics and automated handling equipment
Installation and usage guidance
· Cut the tube squarely with a suitable tubing cutter to obtain a clean, burr-free end.
· Insert the tube fully into a compatible push-in fitting until it reaches the internal stop.
· Perform a gentle pull check after insertion to confirm the tube is securely retained.
· Maintain the manufacturer's minimum bending radius; use the larger flow-relevant radius where pneumatic flow performance is important.
· Keep tubing away from sharp edges, excessive heat and incompatible chemicals.
· Verify the exact pressure, temperature and medium limits for the intended installation before commissioning.
