Flight Mode
Couldn't load pickup availability
Construction
- CNC-machined anodized aluminum housing
- High-strength lightweight construction
- Red anodized finish
- Heavy-duty electric DC motor
- Integrated rechargeable lithium battery
- USB charging interface
- Dual-direction pump mechanism
- Replaceable inline fuel filters
Electrical Specifications
| Parameter | Specification |
|---|---|
| Battery Type | Rechargeable Li-Ion |
| Battery Capacity | 5000 mAh (some newer versions) / 7800 mAh (earlier European listings) |
| Charging | USB |
| Input Voltage | 5V USB |
| Motor Type | Permanent Magnet DC Motor |
| Direction | Reversible (Forward / Reverse) |
The difference in battery capacity appears to be due to different production batches. European dealers list 7800 mAh, while current U.S. and Indian retailers generally list 5000 mAh.
Hydraulic Performance
| Parameter | Specification |
|---|---|
| Flow Rate | 1.5–2.0 L/min |
| Pump Type | Electric Fuel Transfer Pump |
| Fuel Delivery | Constant Flow |
| Flow Direction | Bi-directional |
| Dry Priming | Yes |
| Self-Priming | Yes |
Recent Indian listings specify approximately 1.5 L/min, while European and U.S. dealers list approximately 2.0 L/min.
Fuel Compatibility
Suitable for:
- Gasoline (Petrol)
- Gas/Oil Premix
- Smoke Oil
- Kerosene
- Methanol Glow Fuel
Not recommended for:
- Water
- Brake Fluid
- Corrosive Chemicals
- Strong Solvents
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Housing Material | CNC Aluminium |
| Finish | Red Anodized |
| Length | 190 mm |
| Diameter | 43 mm |
| Weight | Approx. 500–700 g (depending on battery version) |
Features
✔ Reversible pumping
✔ One-button forward/reverse operation
✔ High flow rate
✔ Built-in rechargeable battery
✔ USB charging
✔ Portable cordless operation
✔ High-quality anodized aluminum body
✔ Replaceable inline fuel filters
✔ Brass fuel pickup adapter
✔ Long service life
Typical Applications
- RC Gasoline Aircraft
- UAV Fuel Filling
- RC Helicopters
- Giant Scale Aircraft
- Turbine Smoke Oil Filling
- Kerosene Fuel Transfer
- RC Cars
- RC Boats

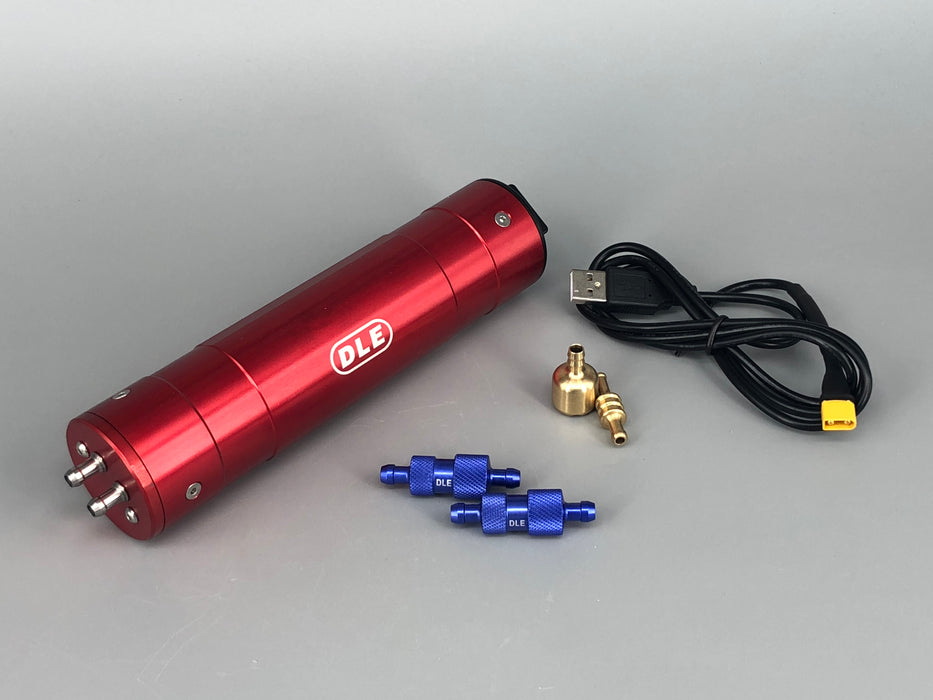

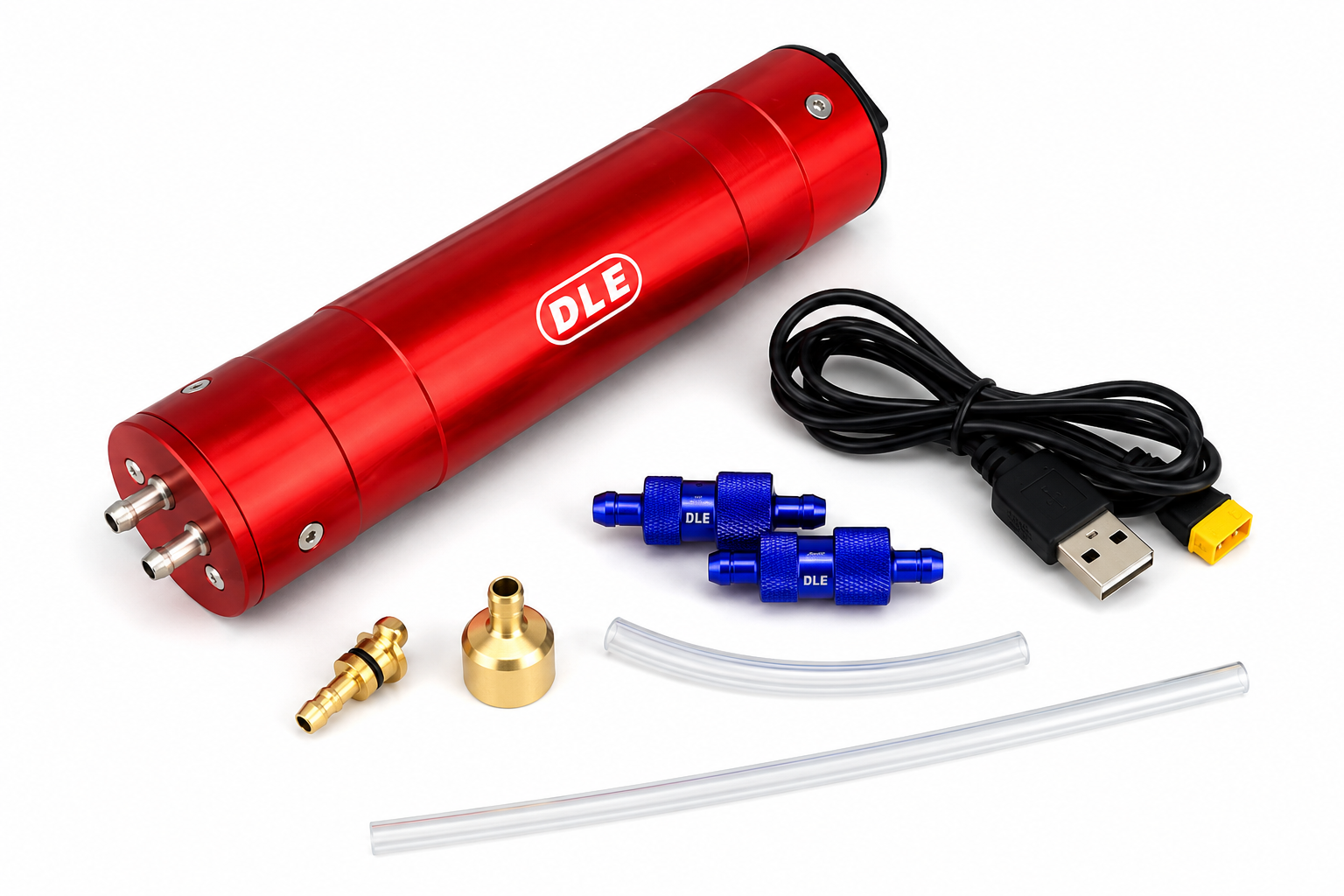

Package Includes
- DLE Electric Fuel Pump
- USB Charging Cable
- Two Inline Fuel Filters
- Brass Fuel Pickup Fittings
- Fuel Tubing
- Fuel Tank Clunk/Pendulum (depending on package version)
Performance
| Specification | Value |
|---|---|
| Flow Capacity | 1.5–2.0 L/min |
| Fuel Lift Height | Approximately 1–2 m (estimated) |
| Continuous Duty | Suitable for intermittent fueling operations |
| Operation | Battery Powered |
| Rechargeable | Yes |
Engineering Assessment
This is one of the highest-quality portable fueling pumps available for large RC gasoline aircraft. Its aluminium construction, reversible operation, integrated rechargeable battery, and high flow rate make it well suited for engines in the 30 cc to 300 cc+ range.
The pump is optimized for moving fuel quickly rather than generating high pressure, which is ideal for RC fueling systems using silicone or Tygon tubing and standard tank fittings. Because DLE does not publish an official pressure rating, it is best to describe it by its flow capacity (1.5–2.0 L/min) and intended use as a high-flow, low-pressure fuel transfer pump, rather than quoting a specific pressure specification.
