DLE 35RA 35cc Gasoline Engine Rear Exhaust with Electronic Ignition
DLE 35RA 35cc Gasoline Engine Rear Exhaust with Electronic Ignition
Couldn't load pickup availability
Product Overview
The DLE-35RA is a high-performance 35cc single-cylinder gasoline aircraft engine designed for giant-scale RC airplanes requiring strong torque, reliable operation, and compact installation. Featuring a rear exhaust (RA) configuration, the DLE-35RA offers cleaner aircraft installations by allowing the muffler to be positioned behind the engine, improving scale appearance and simplifying cowling integration.
Equipped with a precision electronic CDI ignition system, the DLE-35RA delivers dependable starting, smooth throttle response, excellent fuel efficiency, and outstanding power-to-weight performance. Its lightweight construction and proven reliability have made it a popular choice for aerobatic, scale, sport, and 3D aircraft in the 35cc class.
Manufactured using high-quality CNC-machined components and advanced metallurgy, the DLE-35RA is engineered for long service life and consistent performance in demanding flying conditions.
Key Features
- 35cc single-cylinder two-stroke gasoline engine
- Rear exhaust design for cleaner installations
- Electronic CDI ignition included
- Lightweight aluminum crankcase construction
- High-performance ringed piston design
- Excellent power-to-weight ratio
- Reliable starting characteristics
- Smooth throttle transition and idle stability
- Low fuel consumption
- Suitable for aerobatic, scale, and sport aircraft
- Proven DLE reliability
Technical Specifications
| Specification | Details |
|---|---|
| Model | DLE-35RA |
| Engine Type | Single Cylinder, Two-Stroke Gasoline |
| Displacement | 35cc |
| Bore | 38 mm |
| Stroke | 31 mm |
| Recommended Propellers | 18×8, 19×8, 20×8 |
| Ignition Type | Electronic CDI Ignition |
| Spark Plug | NGK CM6 |
| Fuel Type | Unleaded Gasoline + 2-Stroke Oil |
| Fuel Mix Ratio | 30:1 to 40:1 (after break-in) |
| Exhaust Configuration | Rear Exhaust |
| Engine Weight | Approx. 920 g |
| Ignition Weight | Approx. 120 g |
| Total Installed Weight | Approx. 1.04 kg |
| Operating RPM Range | 1,500 – 9,000 RPM |
| Starting Method | Manual Propeller Start |

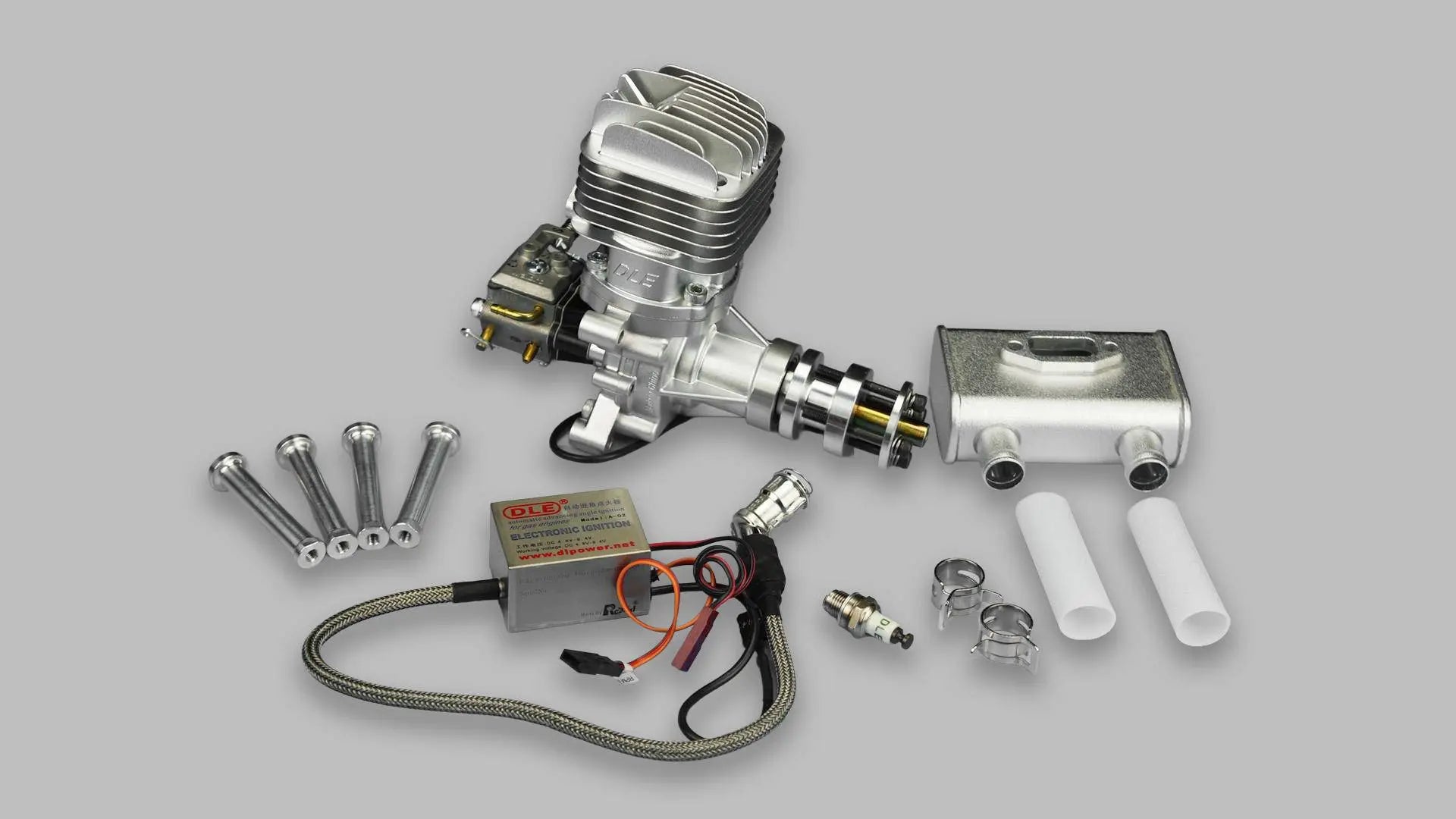

Package Contents
- 1 × DLE-35RA Gasoline Engine
- 1 × Electronic CDI Ignition Module
- 1 × Hall Sensor Pickup
- 1 × Muffler Assembly
- Mounting Hardware
- Spark Plug
- Engine Accessories
Applications
- Giant Scale RC Aircraft
- Aerobatic Airplanes
- 3D Aircraft
- Scale Warbirds
- Sport Aircraft
- UAV Platforms
- Aircraft with Rear Exhaust Requirements
Benefits
Rear Exhaust Configuration
Allows improved scale appearance and easier cowling integration compared to side-exhaust engines.
High Torque Output
Provides strong pulling power for larger aircraft and aggressive aerobatic maneuvers.
Fuel Efficient Operation
Gasoline operation significantly reduces running costs compared to glow engines.
Reliable Electronic Ignition
Offers dependable starts, consistent combustion, and stable performance.
Lightweight Design
Excellent balance between power output and installed weight.
