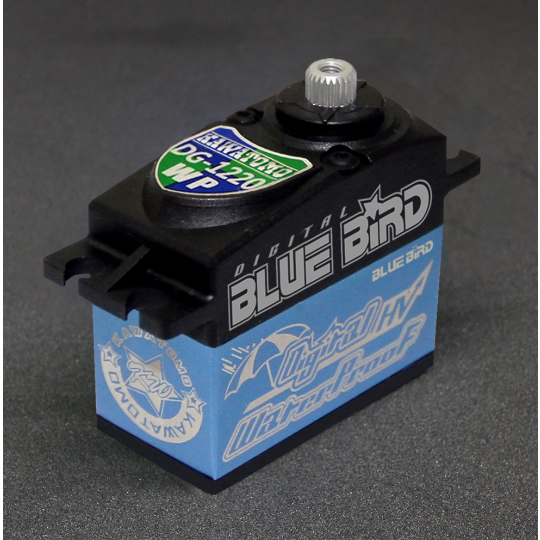

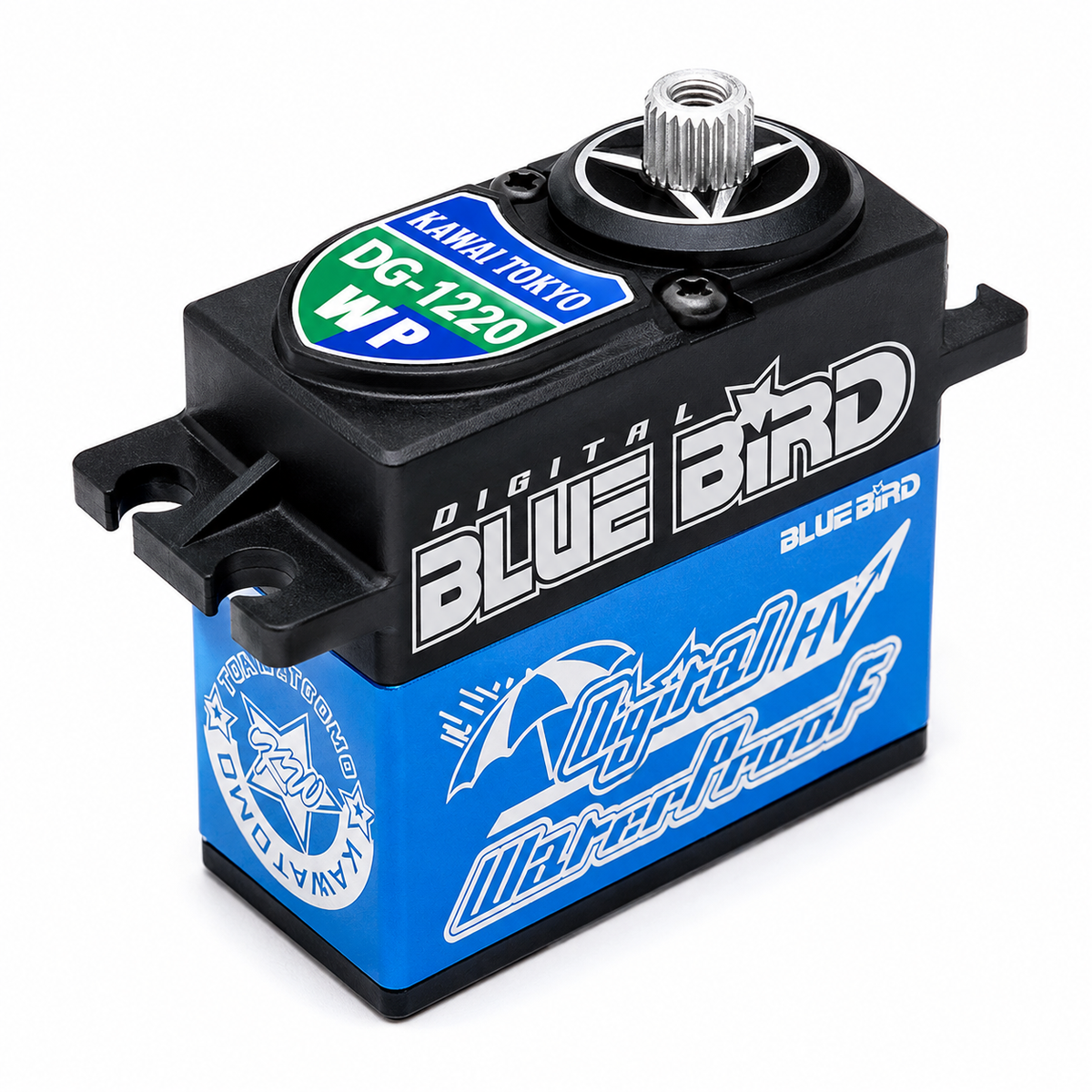

Blue Bird DG-1220WP – High-Torque Waterproof Digital Servo
Blue Bird DG-1220WP – High-Torque Waterproof Digital Servo
SKU: FMBBDG1220WP
Couldn't load pickup availability
Application Summary
IP67-rated waterproof high-torque servo for 1/8 & 1/10 scale buggy, truggy, crawler and boat applications, both EP and gas-engine powered.
Product Specification
|
Servo Type |
HV-Digital, High Torque, Waterproof, Metal Gear |
|
Application |
1/8, 1/10th Buggy, Truggy, Crawler & Boats (EP / Gas Engine) |
|
Torque @ 6.0V |
16.5 kg-cm / 229.2 oz-in |
|
Torque @ 7.4V |
19.7 kg-cm / 273.6 oz-in |
|
Speed @ 6.0V |
0.14 sec / 60° |
|
Speed @ 7.4V |
0.12 sec / 60° |
|
Operating Voltage Range |
6.0V ~ 8.5V (5~6 cell Ni-MH or 2S Li-Poly & 2S Li-Fe) |
|
Operating Temperature Range |
-20°C ~ +60°C (-4°F ~ +140°F) |
|
Control System |
Digital controller, AD 12-bit resolution (4096 steps) |
|
Water Rating |
IP67 — waterproof to 1 meter depth (6 = dust tight, 7 = immersion up to 1M) |
|
Ball Bearing |
Dual, stainless steel |
|
Gear |
All metal gears |
|
Motor |
DC carbon-brushed motor |
