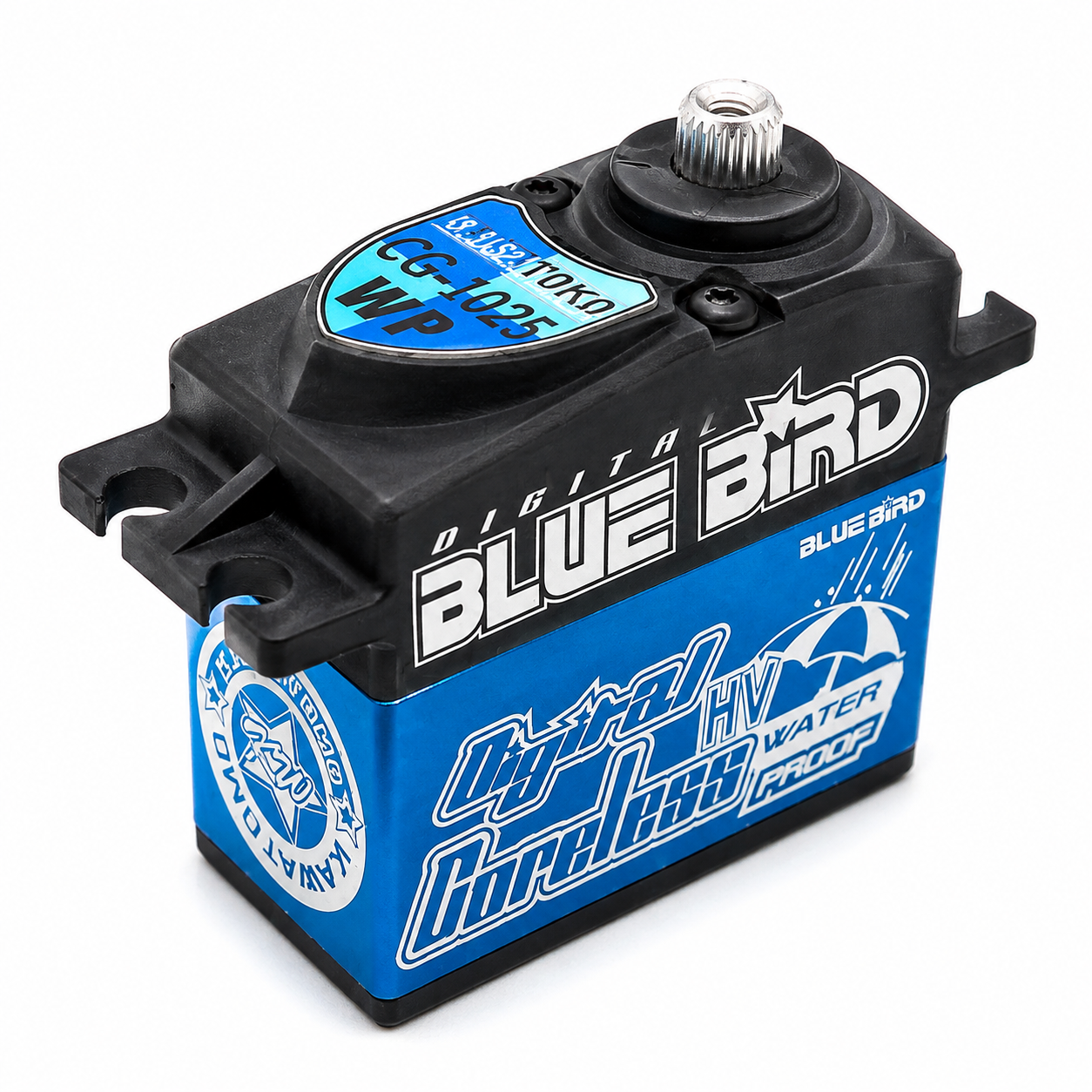

Blue Bird CG-1025WP – IP67 Waterproof HV Coreless Servo
Blue Bird CG-1025WP – IP67 Waterproof HV Coreless Servo
SKU: FMBBCG1025WP
Couldn't load pickup availability
Application Summary
IP67-rated waterproof standard-size servo for 1/8 & 1/10 scale RC cars, crawlers and boats; suited to wet, muddy or dusty operating environments.
Product Specification
|
Servo Type |
Waterproof (IP67), High Voltage, Coreless, Digital |
|
Application |
1/8, 1/10 RC cars, crawlers and boats |
|
Torque @ 6.0V |
22.2 kg-cm / 308.4 oz-in |
|
Torque @ 7.4V |
26.7 kg-cm / 370.9 oz-in |
|
Torque @ 8.4V |
30.5 kg-cm / 423.6 oz-in |
|
Speed @ 6.0V |
0.12 sec / 60° |
|
Speed @ 7.4V |
0.10 sec / 60° |
|
Speed @ 8.4V |
0.08 sec / 60° |
|
Operating Voltage Range |
4.5V ~ 8.5V (4~6 cell Ni-MH or 2S Li-Poly & 2S Li-Fe) |
|
Control System |
Digital controller, AD 12-bit resolution (4096 steps); programmable digital circuit system |
|
Water Rating |
IP67 (Ingress Protection: 6 = dust tight, 7 = immersion up to 1m) |
|
Case / Material |
Aluminum / plastic composite housing, blue finish |
|
Motor |
Coreless motor |
