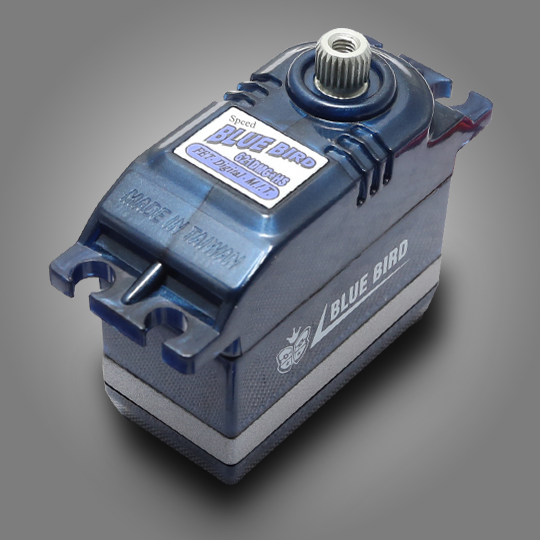

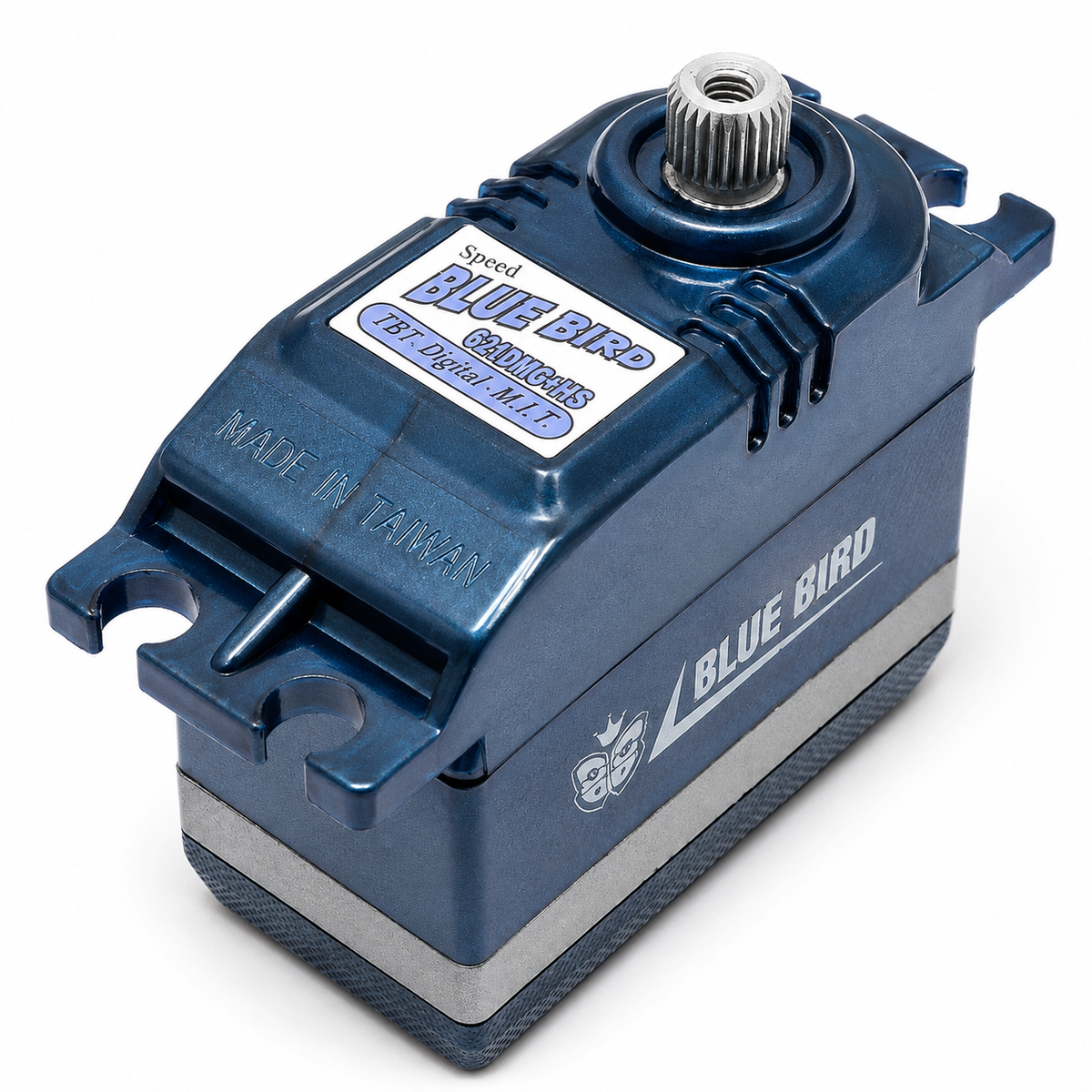

Blue Bird BMS-621DMG+HS – High-Speed Digital Racing Servo
Blue Bird BMS-621DMG+HS – High-Speed Digital Racing Servo
SKU: FMBBBMS621DMG+HS
Couldn't load pickup availability
Application Summary
High-speed digital steering servo for 1/10 scale touring car, on-road and precision racing applications where fast response is prioritized over maximum torque.
Product Specification
|
Servo Type |
Digital, Metal Gear, Waterproof, Heat-Sink Case, High-Speed |
|
Torque @ 4.8V |
6.4 kg-cm / ~91 oz-in |
|
Torque @ 6.0V |
7.2 kg-cm / 100–109 oz-in |
|
Speed @ 4.8V |
0.13 sec / 60° |
|
Speed @ 6.0V |
0.10 sec / 60° (no load) |
|
Ball Bearing |
Double ball bearing (Si-oil lubricated) |
|
Gear Material |
C95 alloy metal gears (ALU 6061 alloy / C95 gear material) |
|
Case Material |
Heavy-duty sealed waterproof housing with alloy heatsink |
|
Control IC |
Digital IC, SOP package, 12-bit data transfer |
|
Driver |
MOS-FET driver, capable of over 7A output |
|
Motor |
3-pole brushed motor |
|
Certification |
CE certified |
|
Dimensions |
40.5 x 20 x 38.5 mm / 1.60 x 0.78 x 1.54 in |
|
Weight |
46.5 g / 1.66 oz |
