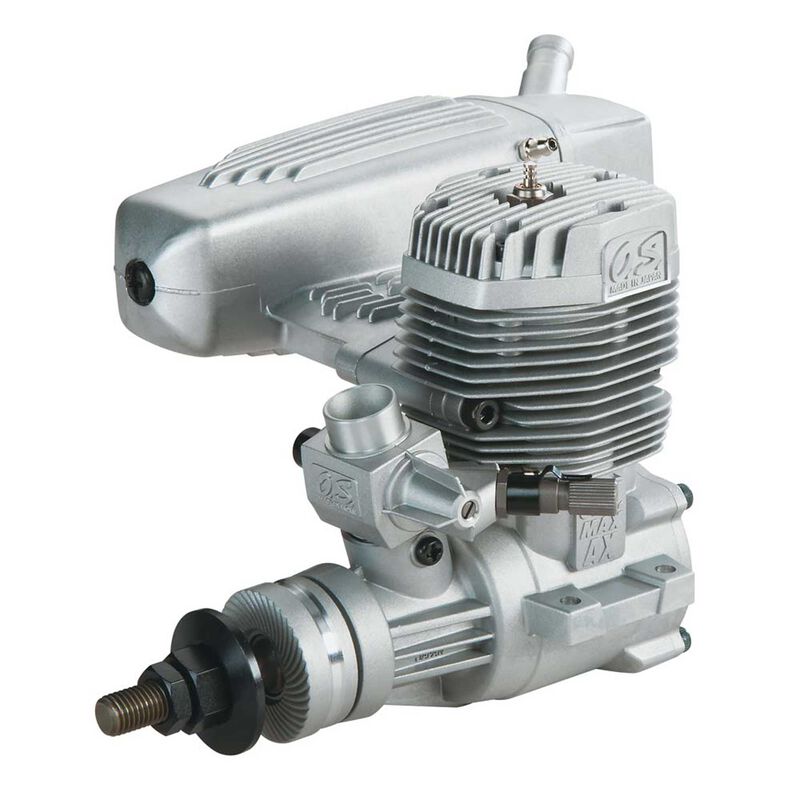

95AX Ringed .95 Airplane Glow Engine with Muffler
95AX Ringed .95 Airplane Glow Engine with Muffler
Regular price
₹36,816
Regular price
₹36,816
Sale price
₹36,816
Taxes included.
Quantity
Couldn't load pickup availability
Taxes included
Product Details
In The Box
- (1) O.S. Max 95 AX ABL Aircraft Engine with E4040 muffler
- (1) Carburetor
- (1) #8 glow plug
- (1) Needle valve extension
- (1) Product manual
Needed to Complete
- Aircraft blend fuel containing 5%-20% Nitromethane with at least 18% lubricant
- Propeller: 14x8, 15x6-8, 16x6-8
- Glow starter and field equipment
Product Specifications
| Manufacturer # | 19120 |
| Oil Type & Content | At least 18% synthetic lubricant |
| Product Length | 3.7" (94.5mm) from back plate to front of drive hub |
| Displacement | 0.949 cu in (15.55 cc) |
| Product Height | 4.1" (103.3mm) bottom of crankcase to top of cylinder head |
| Prop Range | 14x8 x 16x6-8 |
| RPM Range | 2,000 - 11,000 RPM |
| Muffler Type | 2-piece aluminum |
| Bore | 1.091" (27.7mm) |
| Crankshaft Type | Threaded |
| Power Type | Glow |
| Engine (Only) Weight | 20 oz (567 g) |
| Plug Type | O.S. #8 |
| Product Width | 2.4" (61mm) at mounting tabs |
| Crankshaft Threads | UNF5/16-24 |
| Muffler Weight | 6.28 oz (178g) |
| Stroke | 1.083" (27.5mm) |
| Cylinders | Single |
