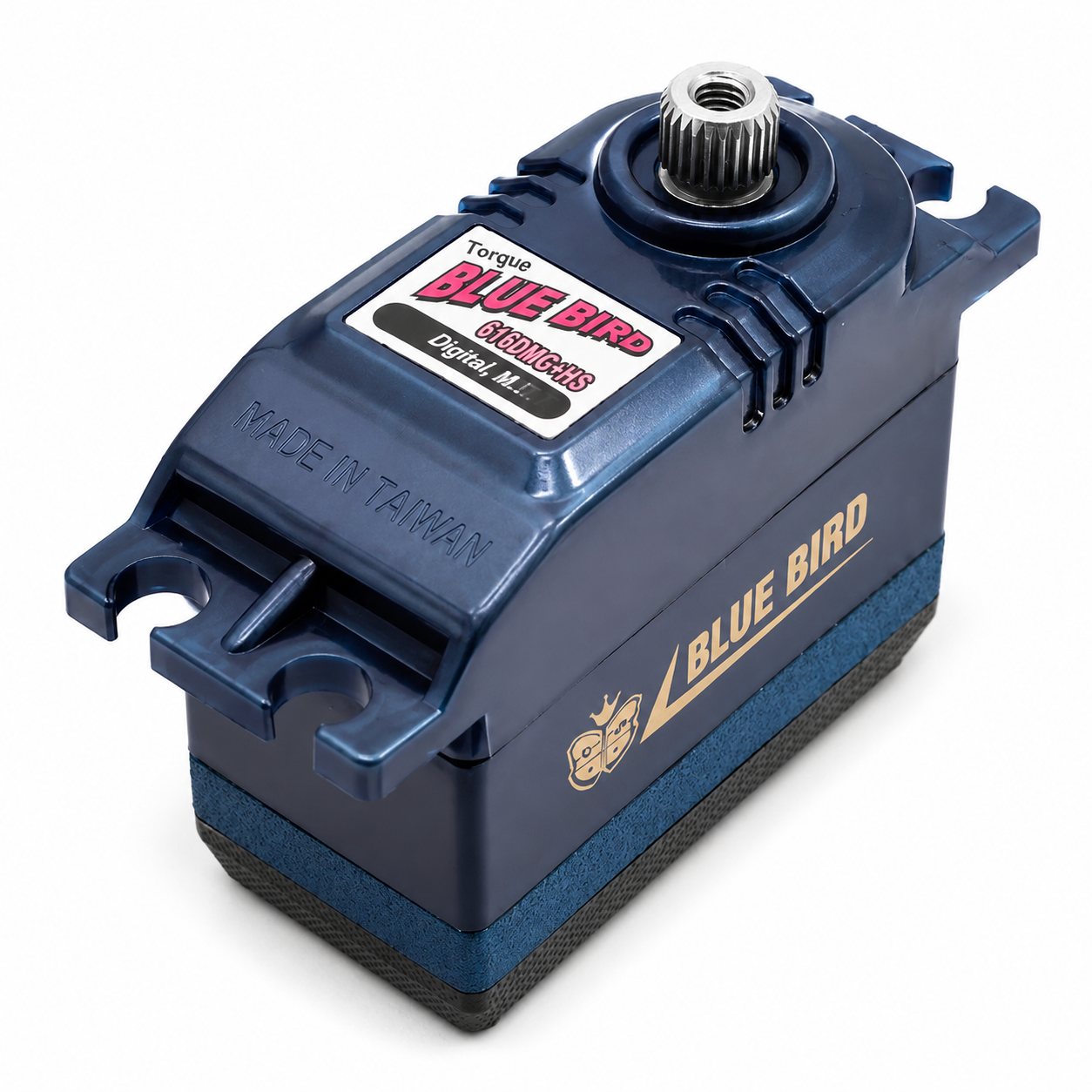

Blue Bird BMS-616DMG+HS – High-Torque Digital Servo
Blue Bird BMS-616DMG+HS – High-Torque Digital Servo
SKU: FMBBBMS616DMG+HS
Couldn't load pickup availability
Application Summary
Digital high-torque steering/throttle servo for 1/8 & 1/10 scale buggy, short-course truck, truggy and off-road applications; sealed for wet/dusty conditions.
Product Specification
|
Servo Type |
Digital, Metal Gear, Waterproof, Heat-Sink Case |
|
Torque @ 6.0V |
10.2 kg-cm / 142 oz-in (≈136–142 oz-in per source) |
|
Speed @ 6.0V |
0.12 sec / 60° (no load) |
|
Operating Voltage Range |
4.8V – 6.0V |
|
Ball Bearing |
Double ball bearing (Si-oil lubricated) |
|
Gear Material |
C95 alloy metal gears |
|
Case Material |
ALU 6061 alloy, heavy-duty sealed waterproof housing with alloy heatsink |
|
Control IC |
Digital IC, SOP package, 12-bit data transfer |
|
Driver |
MOS-FET driver, capable of over 7A output |
|
Motor |
Strong 3-pole brushed motor |
|
Certification |
CE certified |
|
Dimensions |
40.5 x 20 x 38.5 mm / 1.60 x 0.78 x 1.54 in |
|
Weight |
46.5 g / 1.66 oz |
