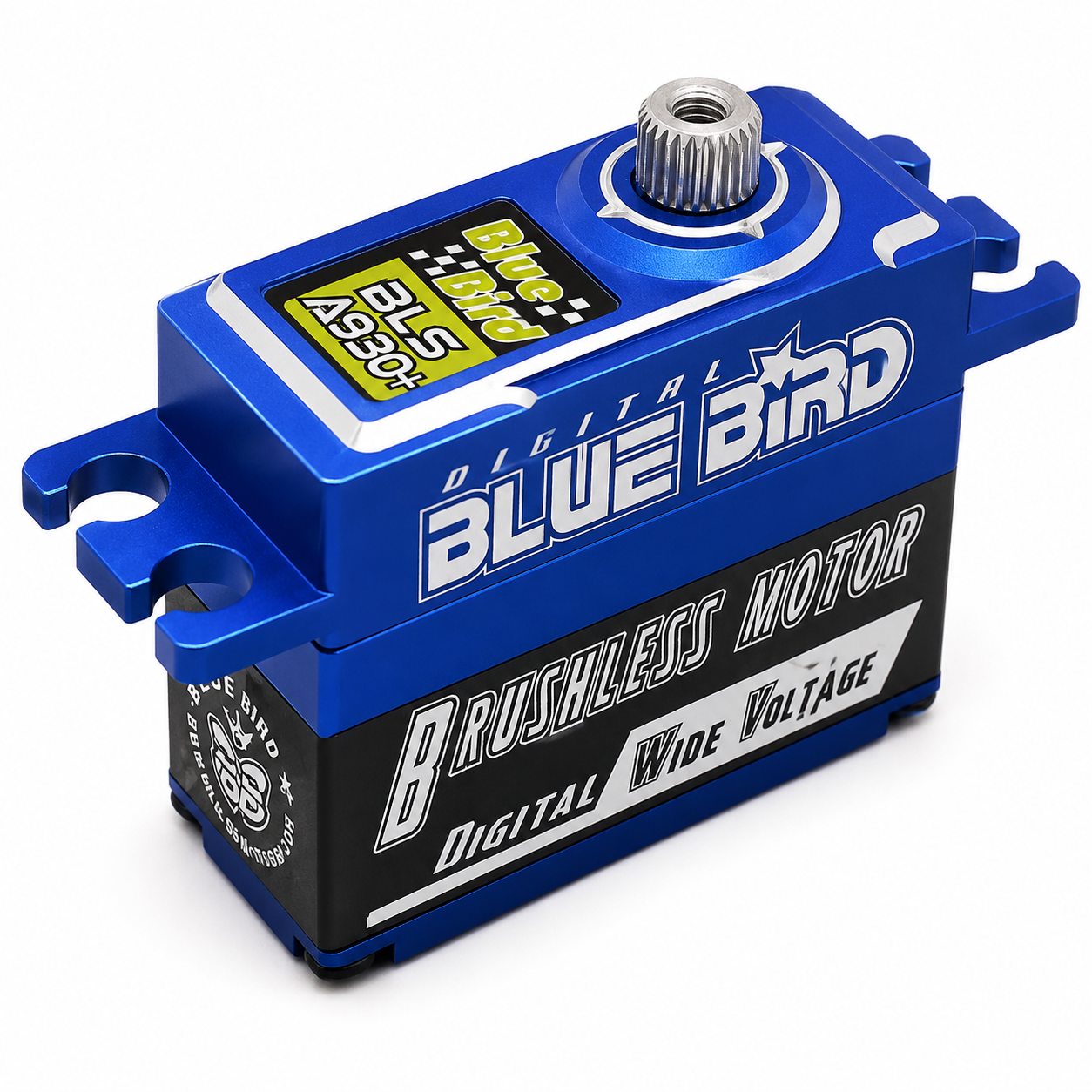

Blue Bird BLS-A930+ – HV Mini High-Torque Brushless Servo

Application

3D Airplane & Jets, Heli 500/550-Class CCPM Cyclic, 1/12th On-Road Car

Torque @ 6.0V

14.2 kg-cm / 197.2 oz-in

Torque @ 7.4V

17.5 kg-cm / 243.1 oz-in

Torque @ 8.4V

19.8 kg-cm / 275.0 oz-in

Speed @ 6.0V

0.10 sec / 60°

Speed @ 7.4V

0.08 sec / 60°

Speed @ 8.4V

0.07 sec / 60°

Operating Voltage Range

4.5V ~ 8.7V (2S Li-Fe & HV Li-Poly compatible)

Control System

32-bit CPU digital calculator, AD 12-bit resolution (4096 steps); frequency up to 333Hz, neutral 1500us or 1520us

Dead Band Width

0.001ms (1us)

Ball Bearing

Dual

Gear

All metal gears

Motor

High-Efficiency Brushless Motor

Horn / Gear Spline

25 Teeth

Soft Start Protection

Soft start to neutral position

Locked Rotor Protection

Stalls in 5 sec, output torque reduces

Lose Control Protection

Returns to neutral position and locks on signal loss

Dimensions

35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in

Weight

35.5 ± 1 g / 1.25 oz
